鍍錫鍍鉻連續生產線 Continuous tinning (chroming) line

● 主要技術參數 main technical specification

原料及成品規格：             material and final products

來  料：冷軋退火卷           material: annealed cold roll coil

調質度：T2～T5及DR、DI      Temper: T2 to T5, DR, DI

厚  度：0.15～0.55mm         Thickness:0.15 to 0.55mm

寬  度：750～1050mm          width: 750 to 1050mm

機組帶鋼鍍錫量：雙面2.8～11.2g/m2、差厚鍍 ,tin coating mass: 2.8 to 11.2 g/m2, symmetrical or asymmetrical

機組工藝段速度：Max 400m/min   max speed: 400mpm

本類機組主要為生產應用于包裝、容器、噴霧罐、瓶蓋和各種蓋子的鍍錫板，鍍錫板是兩面鍍有純錫的冷軋低碳薄鋼板或鋼帶，它將鋼的強度和成形性同錫的耐蝕性、錫焊性和美觀的外表結合于一種材料之中。

This line can produce tinplate products used in packaging, canning, and aerosol canning, can caps and bottle caps. Tinplate is tin-coated cold-rolled low-carbon steel sheets or coils, which has steel’s strength and formability, as well as anti-corrosion, easy-welding and shining appearance from tin.

 ● 依據客戶要求量身定做，極限規格可達：0.14mm、0.6mm、1200mm；

 Custom made, thickness can be from 0.14mm to 0.6mm, width can be as wide as 1200mm

 ● 可以適應不同來料，包括：MR、SPCC、08AL、Q195LD等，調質度范圍：  T1、T2、T3、T3.5、T4、T5及DR7、7.5、8、9

 Can be adapted to different raw material, including MR, SPCC, 08Al, Q195LD. The temper can be from T1, T2, T3, T3.5, T4, T5 and DR7, DR7.5, DR8 and DR9.

 ● 全線采用交流變頻傳動，最高速度可達420mpm；

 The whole line is using AC frequency inverter driving, the maximum speed can be 420mpm

● 采用可溶性陽極（或不溶性陽極）

 solvable or unsolvable anode

 ● 采用聯合軟熔技術、純感應加熱技術；

 Combined-melting technical 、Pure induction heating.

● 提供LTS生產技術和低鉻鐵、鱗化板的生產技術；

 Providing LTS production technology and phosphorous passivation production technology

 ● 鍍錫（鉻）量：雙面2.8~11.2g/m2（鍍鉻120mg/m2）、差厚鍍

 Tin coating mass: 2.8 to 11.2 g/m2 (chrome 120mg/m2), symmetrical or asymmetrical coating

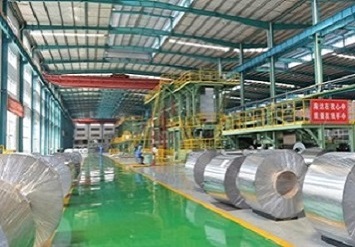

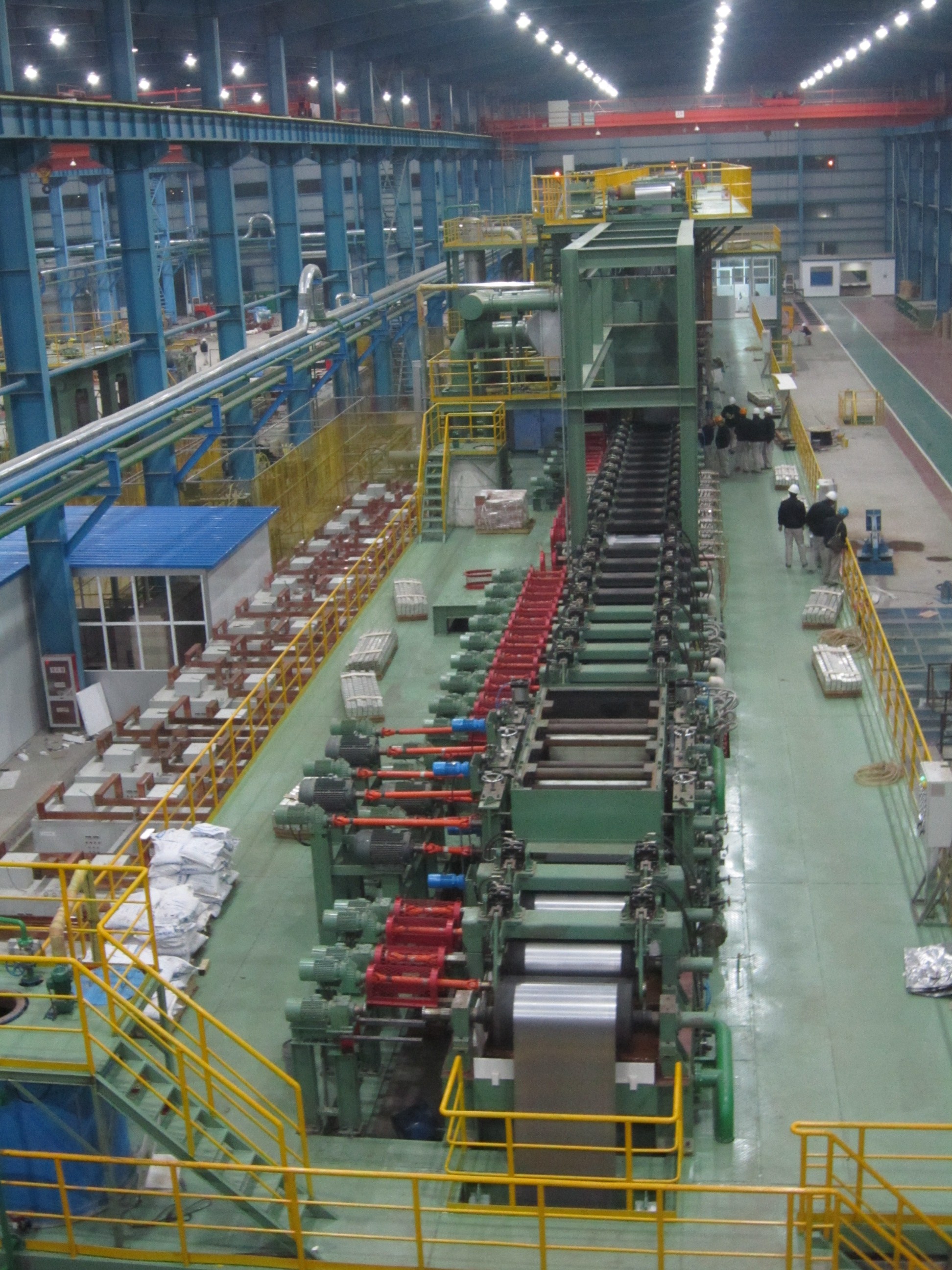

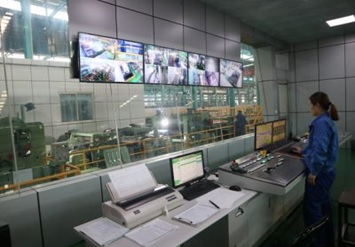

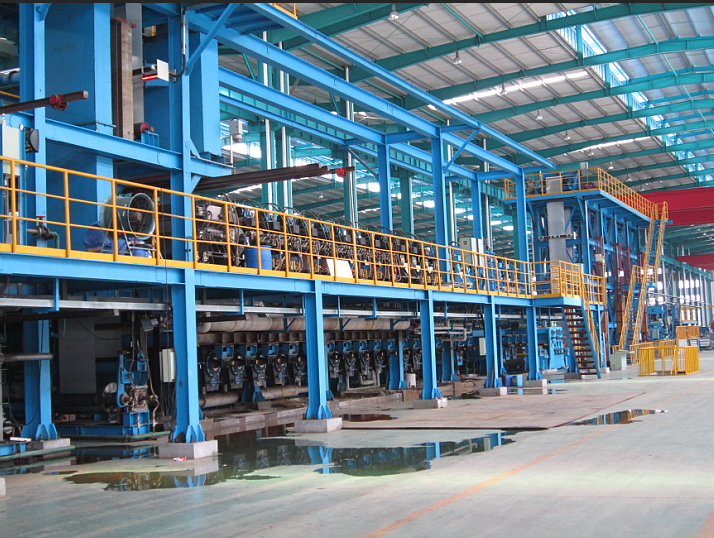

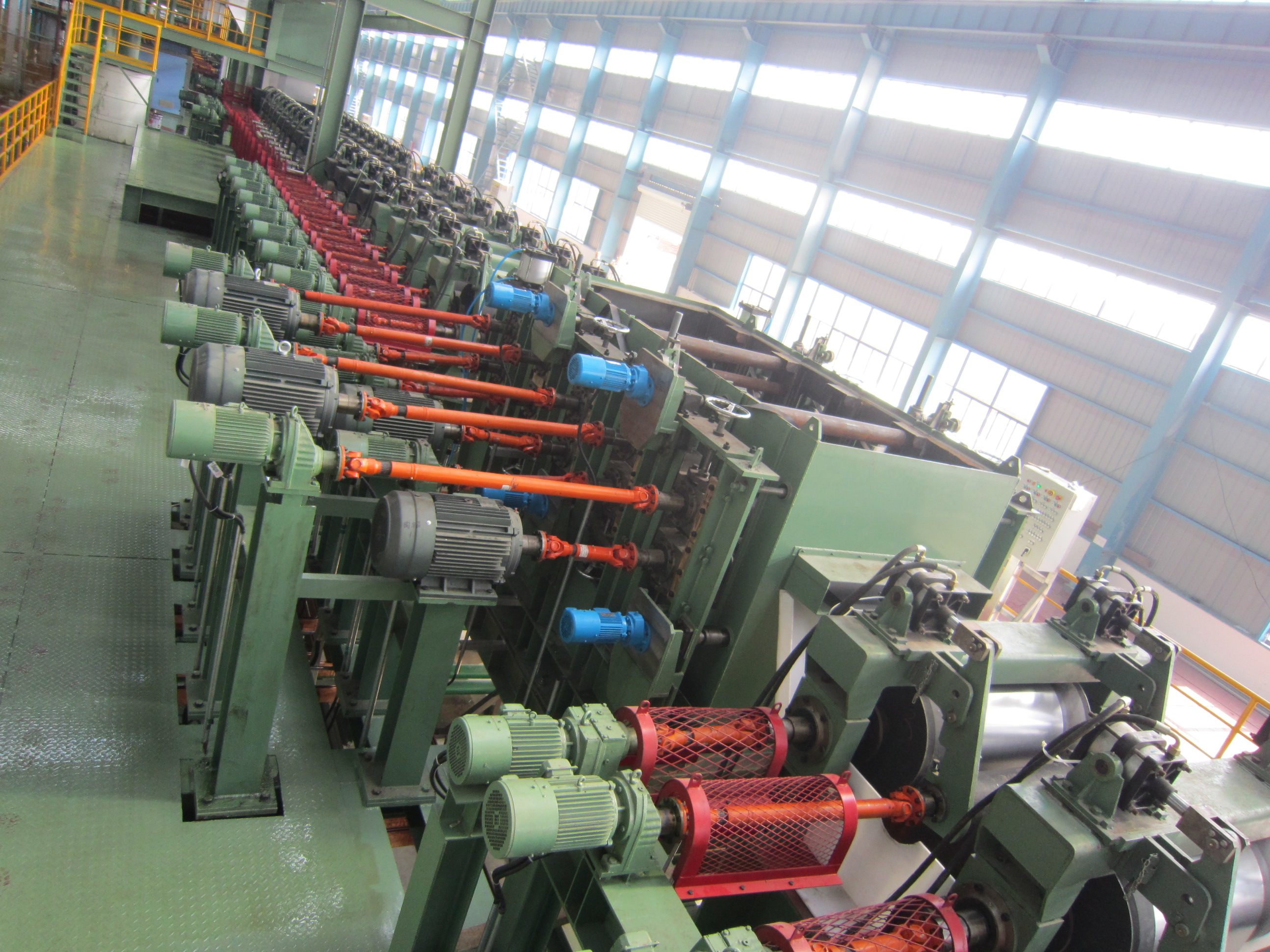

注：本站展示所有圖片皆為我公司承接工程實拍。
